DIY TD04 Water lines

Discussion in 'Engine / Fueling / Turbo' started by H_D, Feb 2, 2019.

  1. H_D

    H_D Paid Member

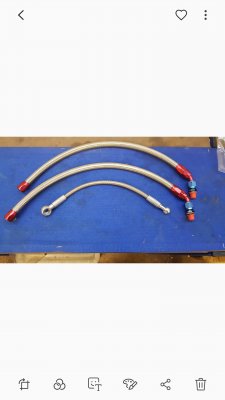

    Got my td04 water lines locally for £50 all in. If you source all the parts yourself it will probably be a bit cheaper. If anyone is making their own you will need the following...


    2x m12x1.25 to an6 adaptors
    2x 45 degree an6 fittings.
    An6 braided hose (length varies on different setups)
    2x an6 hose end finishers.

    The an6 hose diameter is a touch smaller than the water pipes on the thermostat housing, dip the hose end in hot water for a few mins and they slide on without much force.

    Fez and SKINY like this.
  2. SKINY

    SKINY Registered User +

    We should have this pinned Jay for posterity :cool:

    H_D likes this.
  3. davehart

    davehart Paid Member

    They look pretty sweet and not bad at all for £50.

    I could imagine a trader charging more for those.

    H_D likes this.
  4. H_D

    H_D Paid Member

    TD charge £110 for the oil and water lines. I paid £50 for water lines and £20 for the oil lines

  5. SKINY

    SKINY Registered User +

    They certainly know how to charge :eek:for 110£ I'd want them fitted and full service done :p
    Must check my local powertran see how much all them fittings would be

  6. davehart

    davehart Paid Member

    Its a good thing to make your own up sometimes if you can, I had to make my own custom ones up for a Celica I had, not sure how much they cost but it was a lot less thatn buying a kit from someone.

    SKINY likes this.
  7. Jay

    Jay Admin

    Powertran did a set for me Skiny, handed them the WEPR ones to copy. Was a little cheaper than £50 but that's a fair price for them.

    SKINY likes this.
  8. SKINY

    SKINY Registered User +

    Yea its a good price, mine came with the tf035, oil feed brand new. 85£ all in :cool:

    Rickyt likes this.
