Submit Your Information for the Power Board Here

Discussion in 'Rolling Road Section' started by Franza1, Aug 12, 2007.

  1. Franza1

    Franza1 Supermoderator & Area Reps Manager

    OK After Numerous requests I'm getting started on the TGTT Power board,

    The way it's gonna work is that this Thread will act as a collecting pot for power figures, All power figures will be displayed as Wheel Horse Power

    All power figures must be backed up by a valid printout, name of Rolling Road, Engine type and Year and Type of Car

    This thread is only for collecting information and as a reference for proof of figures, please do not post unless your post contains the above information,

    Please make sure your RR printout is Legible

    if you do not post up a printout your post will be deleted no warning given, you have been warned,

    Cheers Frankie

  2. Franza1

    Franza1 Supermoderator & Area Reps Manager

    This is how submissions should be formatted

    Username: Franza1
    Car: Glanza
    Year: 1998
    BHP at Wheels: 160BHP
    Torque: 160LBS
    Engine Type: 4EFTE
    Turbo: CT9B
    Boost: 0.8bar
    Modifications: http://www.toyotagtturbo.com/viewthread.php?tid=24019 (link to your My Car Page)
    Roling Road used: TGTT Services
    Printout:
    [​IMG]

  3. Franza1

    Franza1 Supermoderator & Area Reps Manager

    Username: GeeUK
    Car: Glanza
    Year: 1996
    BHP at Wheels: 186BHP
    Torque: 200LBS/250LBS (Second run different day)
    Engine Type: 4EFTE
    Turbo: TD04L
    Boost: 0.9bar
    Modifications: My Car Blog
    Roling Road used: The Racing Line (Dyno Dynamics)
    Printout:

    [​IMG]

    Click here to enlarge


    And here is another run from a different day with ignition timing adjusted. Seems to be more torque.

    [​IMG]

    Click here to enlarge

    And here is the A/F information

    [​IMG][​IMG]

    Click here to enlarge page 1

    Click here to enlarge page 2

    I included additional prints/graphs/info for reference. May show some insight on power loss to the wheels and A/F etc. Hope this is OK?

  4. Franza1

    Franza1 Supermoderator & Area Reps Manager

    Username: Aga
    Car: Glanza
    Year: 1998
    BHP at Wheels: 216 WHP
    Torque: 175.6 lb ft - 238.1 Nm
    Engine Type: 4EFTE
    Turbo: Greddy TD04H-15G
    Boost: 1.15 bar
    Modifications: http://www.toyotagtturbo.com/member.php?action=viewpro&member=Aga
    Roling Road used: Vamag Dyno (@ evoland)
    Printout: http://www.team-ep789.gr/images/dynos/dyno_aga.jpg


    Username: focus2351
    Car: 4door GT
    Year: 1994
    BHP at Wheels: 288 WHP
    Torque: 237.1 lb ft - 321.5 Nm
    Engine Type: 4EFTE
    Turbo: Greddy TD04H-15G
    Boost: 1.5 bar
    Modifications: 5E fully built, powerfc, GT28 turbo http://www.team-ep789.gr/member_george.htm
    Roling Road used: Vamag Dyno (@ evoland)
    Printout: http://www.team-ep789.gr/images/dynos/dyno_focus2351.jpg


    Username: Monkfish
    Car: GT
    Year: 1995/6 (N)
    BHP at Wheels: Err, dunno. Got 179.14 @ fly though :)
    Torque: 152 lb/ft
    Engine Type: 4EFTE
    Turbo: Stock CT9a
    Boost: 1 bar
    Modifications: Clicky
    Roling Road used: Westec, Newport

    Printout: (flywheel power)
    BHP
    [​IMG]

    Torque
    [​IMG]

  5. Franza1

    Franza1 Supermoderator & Area Reps Manager

    Username: rw
    Car: Starlet EP71 Turbo S
    Year: 1991
    BHP at Wheels: 255,3 BHP
    Torque: 305nm @ 5775 rpm
    Engine Type: 4EFTE
    Turbo: TD04L
    Boost: 1,5 bar
    Modifications: 4efte ,tdo4l ,fmic , dicktator management, excell external wastegate with screamer downpipe,smart dumpvalve, rc injectors 440cc , walbro 255l/hr supra pump,lightened flywheel ,knife-edged crank, balanced bottom end ,flowed head, air-fuel gauge , lenso racing wheels, mandrel bent boost pipes and exhaust , .............and lots more .........191kw at 1.5 bar boost.
    Roling Road used: Hyper Power Dynamometer
    [​IMG]



    Username: Michael
    Car: EP82
    Year: 1995 (M)
    BHP at Wheels: 177bhp
    Torque: 162 lb/ft
    Engine Type: 4EFTE
    Turbo: Hybrid CT9
    Boost: 1 bar
    Modifications:
    Roling Road used: Engine Advantages

    Printout: (flywheel power)
    213.5 BHP
    [​IMG]


    Username: steveep82
    Car: Gt squarelamp
    Year: 1992
    BHP at Wheels: 201.3BHP/ 239.6bhp ATF
    Torque: 190LB/ft
    Engine Type: 4EFTE
    Turbo: Td04L
    Boost: 1 bar
    Modifications: Custom Td04l full kit, uber jap ecu remap, fpr, 255ltr/hr pump
    Rolling Road used: Enginetuner, Plymouth, (dyno dynamics)

    [​IMG]

    [​IMG]

  6. Franza1

    Franza1 Supermoderator & Area Reps Manager

    Last edited: Aug 12, 2007
  7. HOODEY

    HOODEY Fresh Recruit

    Username: Fernando
    Car: GLANZA V
    Year: 1998
    BHP at Wheels: 247 WHP
    Torque: 200 Lbs Ft
    Engine Type: 4EFTE
    Turbo:gt28rs
    Boost: 18psi
    Modifications: 5efhe,gt28rs,emanage ultimate 330cc injecotrs,tial,2.5 exhaust
    Boost: 1bar
    Roling Road used: RotoTest
    Printout: http://bajanchameleon.com/5efhe_test1.html

    Last edited by a moderator: Oct 19, 2007
  8. WallaceGlanza

    WallaceGlanza Paid Member

    Username: WallaceGlanza
    Car: Glanza V
    Year: 1997
    BHP at Wheels: 157.8
    Torque: 167ftlb (at the fly)
    Engine Type: 4EFTE
    Turbo:Stock CT9A
    Boost: 15psi
    Modifications: http://www.toyotagtturbo.com/showthread.php?t=762
    Roling Road used: Japerformance - Dyno Dynamics rollers
    Printout:
    [​IMG]
    [​IMG]

  9. Aga

    Aga Paid Member

  10. Dj ep

    Dj ep Paid Member

    Username: Dj Ep
    Car: ep82
    Year: 1989
    BHP at Wheels: 217BHP
    Torque: 222LBS
    Engine Type: 4EFTE
    Turbo: blitz k24 poss k26
    Boost: 1.1 bar
    Modifications: http://www.toyotagtturbo.com/showthread.php?t=194
    Roling Road used: WGT AUTODEVELOPMENTS
    Printout: [​IMG]

    [​IMG]

  11. enginetuner

    enginetuner Fresh Recruit

    Steve EP82s car earlier this year came back to us at Enginetuner and was remapped using the Greddy E-Manage Blue...Boost @ 1.1 bar....
    [​IMG]

  12. Stu-

    Stu- Registered User +

    Dyno Results

    Username: Stu-
    Car: EP71
    Year: 1985
    BHP at Wheels: 265BHP (195kw)
    Torque: 413LBS (560nm)
    Engine Type: 4agte
    Turbo: To4e
    Boost: 1.088Bar (16psi)
    Modifications: to come
    Roling Road used: Torque Performance
    Printout:
    [​IMG]

  13. Aga

    Aga Paid Member

  14. slostar

    slostar Fresh Recruit

  15. scatman56

    scatman56 Registered User +

    Username: SCATMAN56
    Car: TOYOTA TERCEL
    Year: 1999
    BHP at flywheels:276.40 aprox
    BHP at Wheels: 234.40 WHP 93oct gasoline
    Torque: 207.18 Lbs Ft
    Engine Type: 4EFTE
    Turbo:TDO4HL 15G 7CM2 VOLVO
    Boost:1.3bar=19psi
    Modifications: MEGASQUIRT ,2.5 exhaust PHANTOM GRIP,PRESISON TURBO FMIC,IMNOVATE WIDE BAND .etc
    http://www.toyotagtturbo.com/showthread.php?t=3933&highlight=project+tercel
    :rockon:<a href="http://s293.photobucket.com/albums/mm66/scatman56/?action=view&current=ID2.jpg" target="_blank"><img src="http://i293.photobucket.com/albums/mm66/scatman56/ID2.jpg" border="0" alt="Photobucket"></a>

    Last edited: Oct 4, 2008
  16. jimmer

    jimmer Registered User +

    Username: Jimmer
    Car: Starlet GT
    Year: 1992
    BHP at Wheels: 183.2BHP WHP
    Torque: 191.6LBS
    Engine Type: 4EFTE
    Turbo:AET Turbos Hybrid
    Boost: 1bar
    Modifications:HKS air filter at front bumper, HKS EVC-5 boost controller, HKS ssqv, WEPR front mount, WEPR manifold, WEPR full system, AET turbo's hybrid
    Roling Road used: AI Autosport
    Printout:[​IMG]

    Last edited: Apr 5, 2008
  17. damussi

    damussi Registered User +

    Username: damussi
    Car: GT Starlet
    Year: 1994
    BHP at Wheels: 292 WHP
    Torque: 267 lb ft
    Engine Type: 4EFTE
    Turbo: T3 turbo
    Boost: 20 psi 50 shot NOS
    Modifications: J&E forged pistons, Pauter forged rods, ACT clutch and pressure plate ,T3 turbo, Tial wastegate, LSD, Apexi Super AFC , custom ex manifold , custom IC piping , FMIC, 50 shot NOS , ported TB, HKS SSQ BOV, metal headgasket , TRD lowering springs and shocks, Cusco pillow ball upper mounts, Cusco front Strut bar, 440 cc injectors, walbro 255 l/hr fuel pump
    Rolling Road used: Dyno Jet Antigua
    Printout: [​IMG]

    Last edited: May 14, 2008
  18. Timmy

    Timmy Registered User +

    Can I point out that dynojet shouldn't count they read upto 25% higher than dynodynamics, dynapak and dastek dynos.

  19. Chris@CCM

    Chris@CCM Registered User +

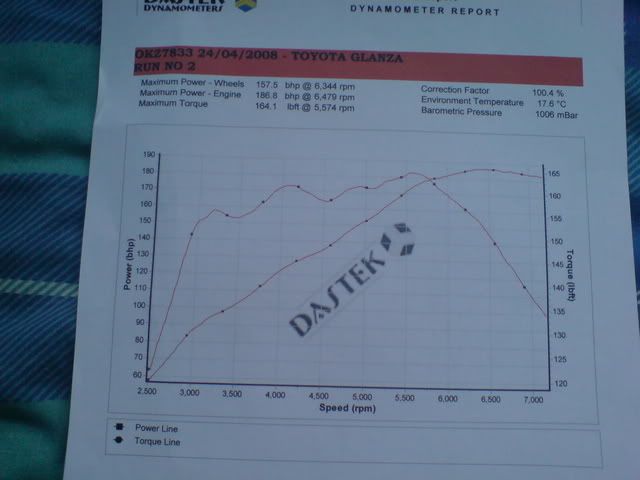

    Username: mi16chris
    Car: ep82 gt turbo
    Year: 1992
    BHP at the wheel:157.5 @6334rpm
    Torque: 164.1
    Engine Type: 4efte
    Turbo:ct9
    Boost: 14.5psi
    Modifications:full blitz exhaust
    autofix decat
    no airfliter
    sard rrfpr
    autobahn88 fmic
    hks fcd
    orc clutch and fly wheel
    sps manifold
    hks actuator
    (spec has now changed)
    Roling Road used: Ai autosport
    Printout:[​IMG]

  20. scatman56

    scatman56 Registered User +

    Username: SCATMAN56
    Car: TOYOTA TERCEL
    Year: 1999
    BHP at flyWheels: 286.29bhp aprox//
    BHP at wheels 243 WHP 93oct gasoline
    Torque: 227.62Lbs Ft
    Engine Type: 4EFTE
    Turbo:TDO4HL 15G 7CM2 VOLVO
    Boost:1.504bar= 21psi
    Modifications: MEGASQUIRT ,2.5 exhaust PHANTOM GRIP,PRESISON TURBO FMIC,IMNOVATE WIDE BAND .etc
    http://www.toyotagtturbo.com/showthr...project+tercel
    [​IMG]

    Last edited: Oct 4, 2008
