Forged Piston End Gaps

Djaniero

Member +
Evening guys.
Just in the process of doing some calculations for my pistons.
I have worked out the end gap for the x2 top piston rings(top ring and second ring), but how do I measure/check the piston rings oil rails clearance ?
Thanks


Attachments

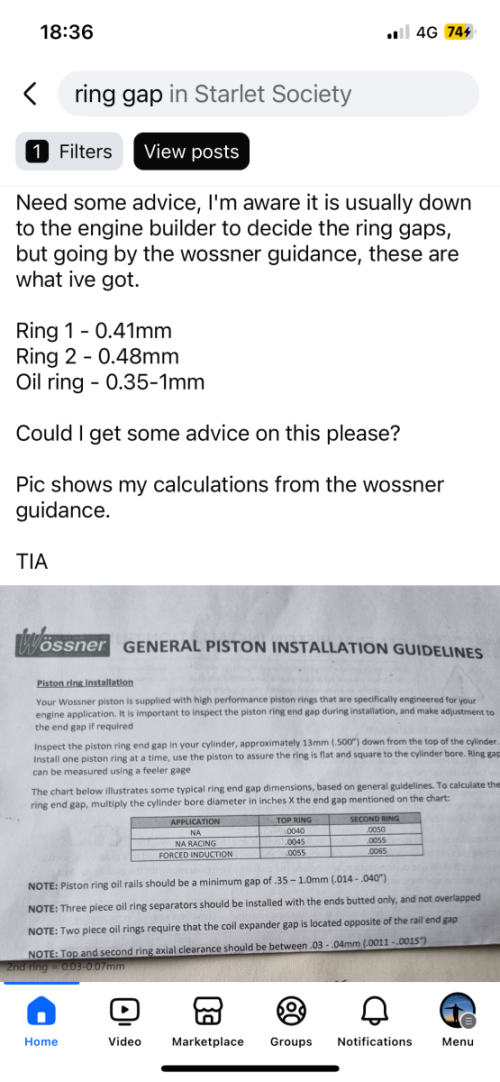

  • IMG_5107.png
    418.2 KB · Views: 2
Top
