Bee*R Rev Limiter to 1ZZ-Fe connection problem

Discussion in 'ELECTRICAL' started by PablosToyotos, Oct 10, 2019.

  1. PablosToyotos

    PablosToyotos Fresh Recruit

    Hi i need help with connection bee*r to my 1zz-fe ecu. I have problem with get the rpm signal.
    I tried connect it to TACH on ecu and IGF but with no results.

    I connect:
    Red wire to 12V battery positive
    Black to battery negative
    Green to NE+
    Yellow to TACH and next to IGF but device don't read the signal :confused: if i swap wires engine dont start.

    Of course the Bee*R is the original one, 30th anniversary with switches

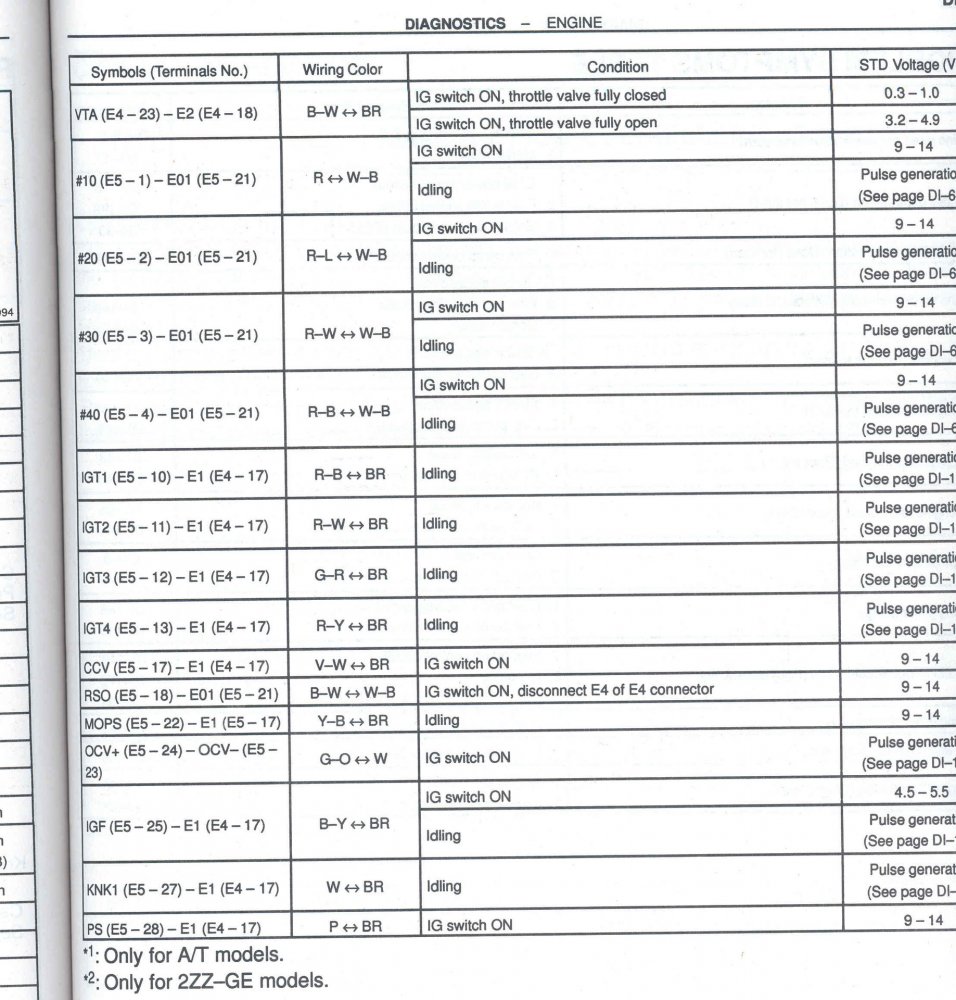

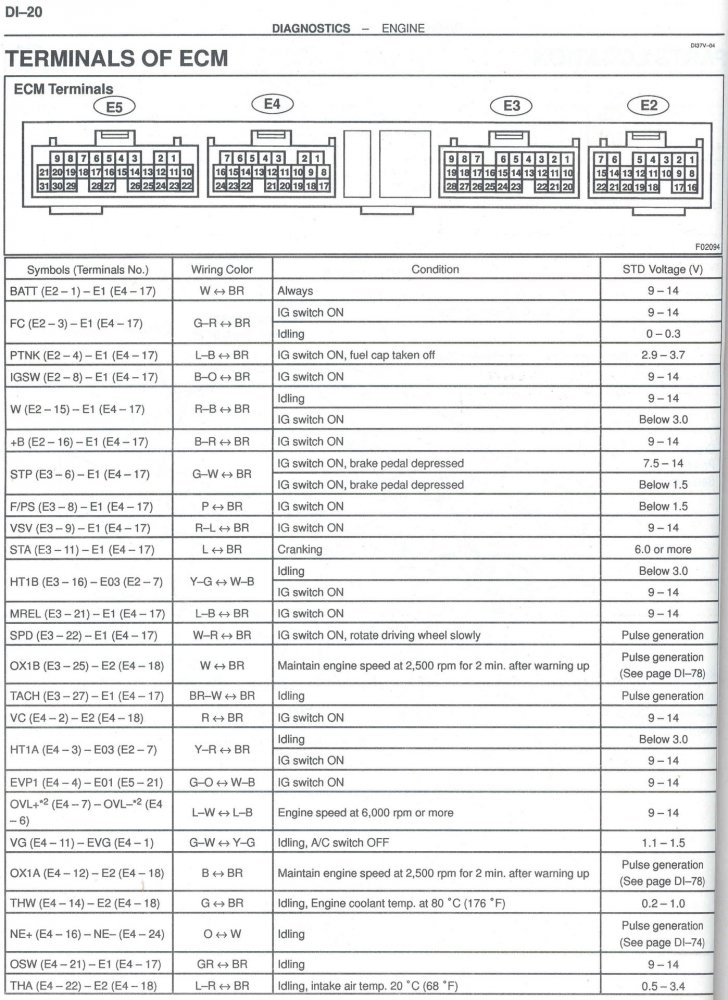

    Attached Files:
