What flange is this mani for?

[billybob]

but billybob you get a tdo4 with 4bolt flanges lol, look at pics, square flange and td04 on the turbo, not td04l

yes lad thats why im saying its an evo tdo4 4 bolts,,,,,best way to find out wip it off then youll know the outcome



[azerty]

yep, not all td04 are for scoobies... especialy as they are made by mitsi lol...
it doesn't look like a mitsubishi flange thought. I would think T3, but hard to say from a pic !



[Texx]

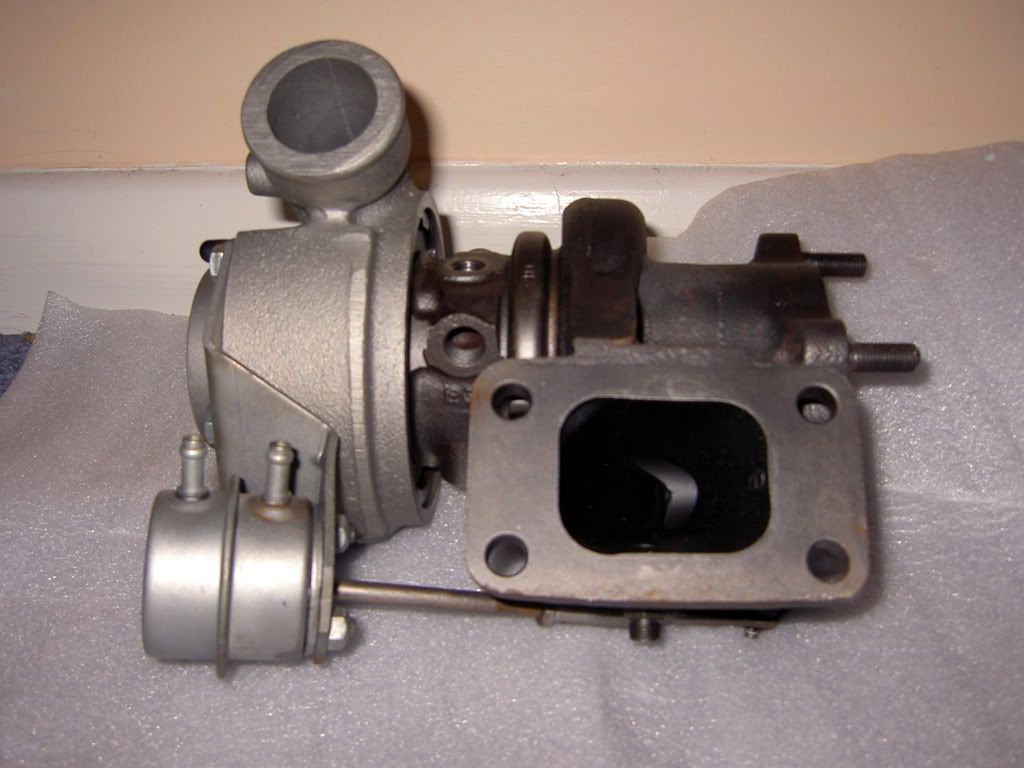

If it's of any help, this is a TD05 with a T3 flange:



[azerty]

or it could be for a TD04H with t25 flange



[jabran200]

looks quite big, defo not t25/8.

Possible a T3 but more like a T4 tbh.

http://www.spdexhaust.com/images/Secondary/ExhaustFlanges/Turbo/T4_Specs.gif



[Sheldon]

If it's of any help, this is a TD05 with a T3 flange:

whats that off?

looks quite big, defo not t25/8.

Possible a T3 but more like a T4 tbh.

http://www.spdexhaust.com/images/Secondary/ExhaustFlanges/Turbo/T4_Specs.gif

t3 and t4 share the same flandge i think?



[jabran200]

whats that off?



t3 and t4 share the same flandge i think?

no they do not, Common misconception as the T3/T4 hybrids use the t3 flange.

The t4 flange is bigger and wider somewhat like the one on that mani.

Take some width and height measurements and compre them.



[Texx]

whats that off?

It's from a discontinued HKS TD05-16G kit for a 3S-GTE.
