4efe dis det3 wiring

nlackg6

Fresh Recruit
hello all
does anyone have a wiring diagram for the corolla 4efe with coil packs?
looking to use in piggyback mode

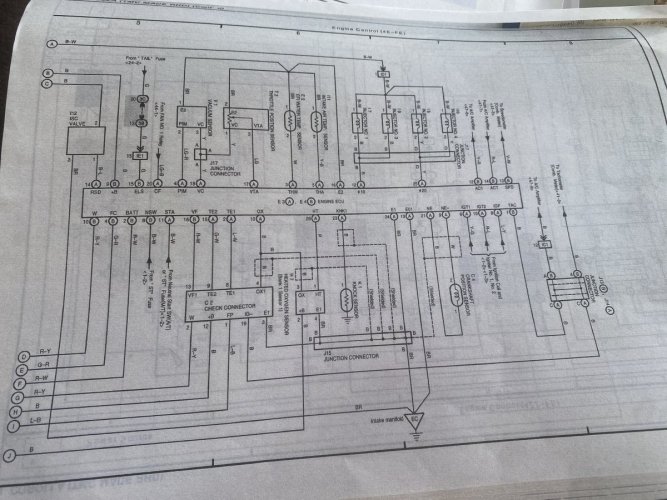

i wired it up as show in this picture but no joy

was getting fault codes

14 no igf signal
15 ?
31 vacume sensor

any help much appreciated


Attachments

  • IMG_4770.jpeg
    280.3 KB · Views: 9
  • IMG_4790.jpeg
    264.7 KB · Views: 7

nlackg6

Fresh Recruit
hello,

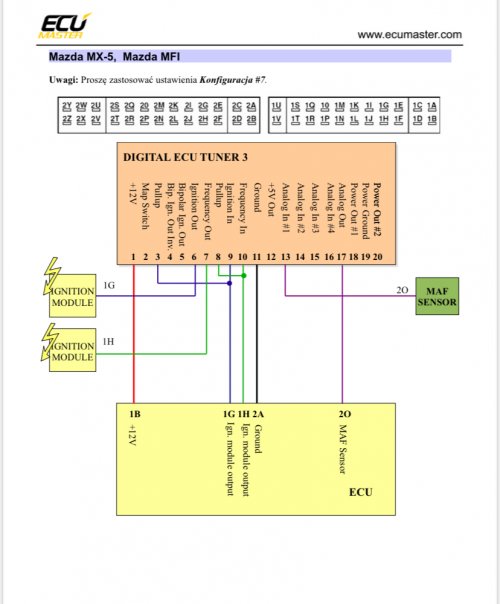

yes i contacted ecu master regarding the wiring and they sent me this diagram for the mx5 as it runs 2 ignition modules as they do t have one for the 4efe


nlackg6

Fresh Recruit
this is similar to the starlet 4efe dizzy set up

if you removed one of the ignition wires from this diagram and removed the pull up from the remaining wire that is the dizzy set up
