4efe ecu need with greddy E-mange blue ignition timing

Geo_4e91

Fresh Recruit
Don't know where -
ignition timing in
&
Ignition timing out wires
Go ?
On 4efe ecu pinout (pin6) is ign timing

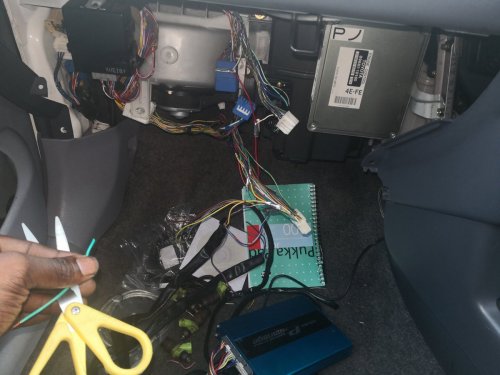

Just don't know where to put (ign out wire) does it go to distributor internal coil I'm confused it's only thing stoppingme from mapping the E-mange blue for low boost.IMG_20200412_152521.jpg


Stu-

Member +
The factory ignition output pin is IGT so thats the one you need to intercept with the emanage wiring. IGF is igntion feedback from the ignitor to the ecu to tell it that its firing so don't intercept that one.
