Crank sensor/Trigger kit

[Fredrik]

What crank sensor/Crank trigger kit are you guys running on a aftermarket ECU?

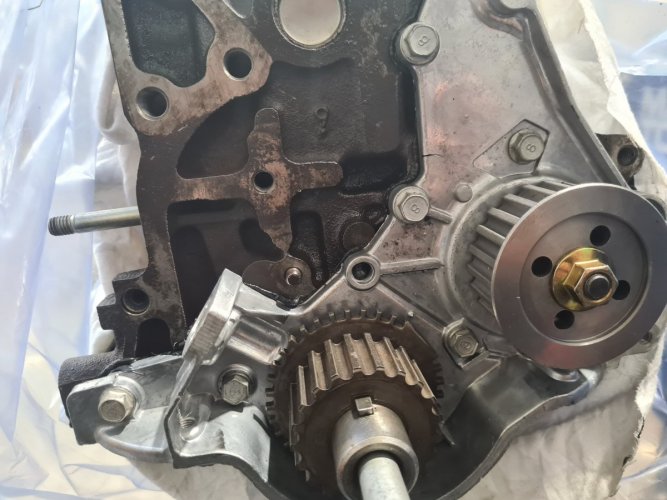

Currently i have purchased this type of crank sensor but as you can see in the picture one of the bolts dont line up.
Anyone tried running this setup without the bolt missing and just a whole lot of silion behind it?



[daniel_g]

I've just fitted this setup to a N/a block I am building. Same issue with the bolt hole. A bit of extra sealer and it should be fine.

Ideally you want 60-2 trigger wheel for more accuracy, but as there is no bolt on kit for Starlets the whole crank sensor setup can be a bit of a carry on. I'm waiting on a 60-2 wheel being fitted to an alloy pulley. Then there is still the issue of a sensor bracket to get perfect.



[daniel_g]

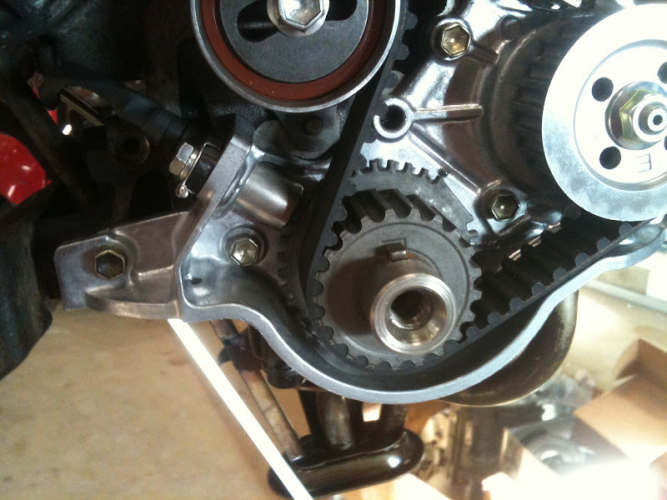

Attached.
