Anti-Lift Kit

Djaniero

Member +
I bought an anti lift kit for my GT recently, and came around to fitting it earlier today.

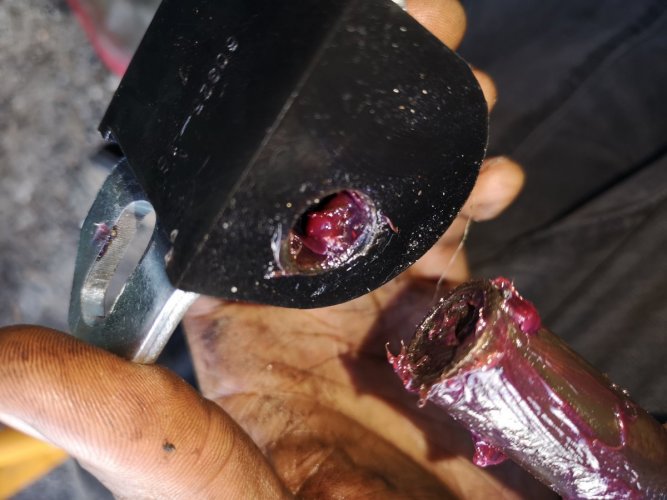

However, the bush hole for the kit is waay too small to go over my front control arm.

Has anyone had this issue before? I'm going to contact the seller and send them back, but just wanted to check I wasn't having a blonde moment first lol.

Thanks


Attachments

  • IMG_20210402_180409.jpg
    144.7 KB · Views: 6

SKINY

Lifer
Do the crush tubes fit the bolts ? You could always bore the poly out to suit, shouldn't have to tho I would think


Djaniero

Member +
Just done some research SKINY and think I see what the issue is.
The whiteline kit I have only fit if you remove the crush tubes. Luckily I have a spare set of arms in the garage, that I removed the crush tubes from a couple of years back, when fitting my previous bushes. @Jay came to the rescue and sold me some other arms with the crush tubes intact...which I have fitted to the car now...hence the reason the whiteline bushes won't fit them.

I'll have a go with them tomorrow and report back :cool:


Djaniero

Member +
Thanks for the headsup @glanzadude. Touch wood I think I have been one of the lucky ones as I've removed the bolts a good few times now. I just always take my time with them and baptise the threads in copper slip.
How was the tracking on yours after you fitted the kit?


glanzadude

Member +
Thanks for the headsup @glanzadude. Touch wood I think I have been one of the lucky ones as I've removed the bolts a good few times now. I just always take my time with them and baptise the threads in copper slip.
How was the tracking on yours after you fitted the kit?
The tracking was well out to be fair. Did you do your homework how to install/ set it up properly? I can give you a run down as I fitted mine wrong first time :(


Djaniero

Member +
Yes, please if you dont mind?

From what I read up the bushing holes need to be facing the outside of the car on either side?

But it doesnt matter which way the plates are facing?


Djaniero

Member +
Cool. Thanks. I didn't get around to fitting them today as I was busy repairing the air suspension on a mates new 5 series BM... :rolleyes: .Will hopefully get on it tomorrow.

ps - did you buy that relocation kit for your td04 or just make it up yourself?


Djaniero

Member +
You already asked in my other thread lol.
Emanage Ultimate, with plug and play harness, 3 bar map sensor and afr harness.
I did have the ME221, but thats another story.
When are you planning you get yours remapped?


glanzadude

Member +
Lol sorry old age, not to sure to remap the é management blue are go with a link are ect. I don't drive my car on at all but saying that I baught my house with a race track close by so who knows the future for the gt :)


Djaniero

Member +
Lol... I know the feeling. I have a memory like an OAP at times.
If you can afford to, standalone will always be a better option as you have full recalibration control. But if you have the emb already, it makes sense to get that mapped. Yeah they re all tech, but our cars are old, and its been a tried and tested piggyback over the years.
I came very close to buying a link recently, but by the time I added up the additional cost for the p n p harness, mapping etc.... I just decided to stick with the emu and use the saved cash towards sorting my lacquer peel out.
Mine is just a weekend warrior and I don't plan on taking it on track - would cry if I binned it lol - so the emu should be enough for me.


Djaniero

Member +
Ps guys... ALK now fitted. Not going to lie, my heart was in my mouth when installing the new hex bolts that scew into the floor pan.
Geo seems fine, but going to get it checked out again to be sure.


Calum122

Member +
I did the Anti-Lift Kit on my GT





It was hard work a I recall!


Djaniero

Member +
Nice arms Cal. Ho you getting on with your GT these days or is she still under wraps?

Yeah the ALK with a bit of a PIA, but managed to get there in the end.
