FCON GCC, how does it connect?

[Dub-Se7en]

i've been going through my FCON stuff as i wanna fit it soon, but can't figure out where the gcc plugs in to it.

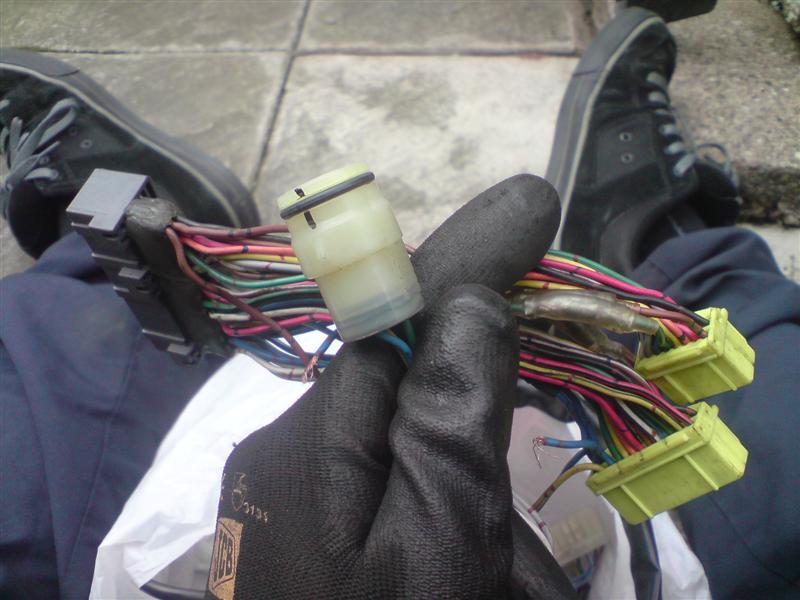

this is the harness i've got

the white connector is for the MAP sensor

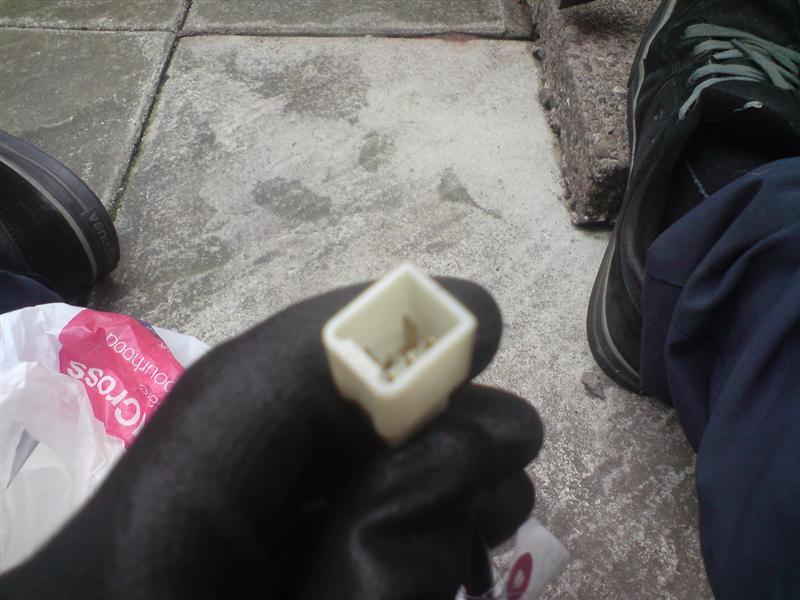

this is the connector for the GCC

am i missing a part of the harness?



[speedvision]

the gcc usually comes with a harness ready to plug and play with the f-con ..if u dont have that iu will have to hard wire it into the f-con

sam



[Dub-Se7en]

ah, as i have no idea which wires it would tap into it might be worth trying to source the correct harness

cheers sam



[speedvision]

ah, as i have no idea which wires it would tap into it might be worth trying to source the correct harness

cheers sam

yeah u can try that or ask around for those who have hard wired it and they may be able to give u the instructions

sam



[sx_turbo]

toby would be the man to speak to im guessing



[streetracer_starlet]

Same problem as me again mate ,lol. Your missing the plug on your harness for the GCC. There is a seprate harness you can get that plugs into your harness ,seen them on yahoo. Or hard wire it as said above, im sure theres diagrams on the net if you search for it :rockon: I'll hunt a GCC down once ive got the fcon running



[L900CMC]

I have the gcc aswell but havnt checked to see if there is a connector on the fcon harness for it
