ECU OF 2E-TELU TURBO S

dolpher

Fresh Recruit

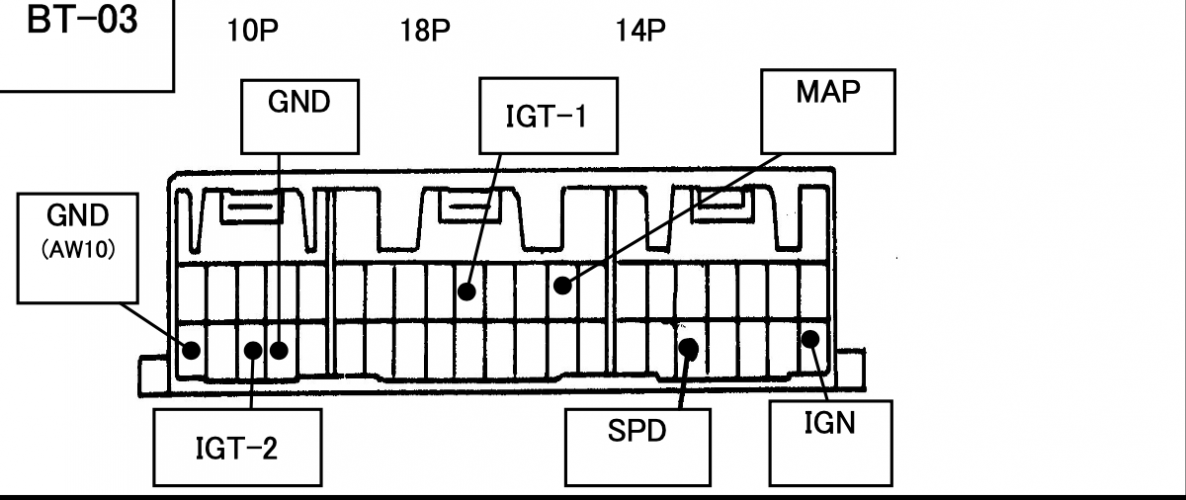

Hello, guys nice forum have found really good info here from time to time I’ve gone searching through a bunch of threads on forums and I'm unable to track down the pinouts of my ECU I actually found everything else, so I was just wondering if anybody ever got them it would be a great help. I will also attach my findings for you or anyone who is trying to find more information about the car.

New to the community so anything helps thanks

Manual: https://fastupload.io/QO4nOPP1eyy8Fbg


Attachments

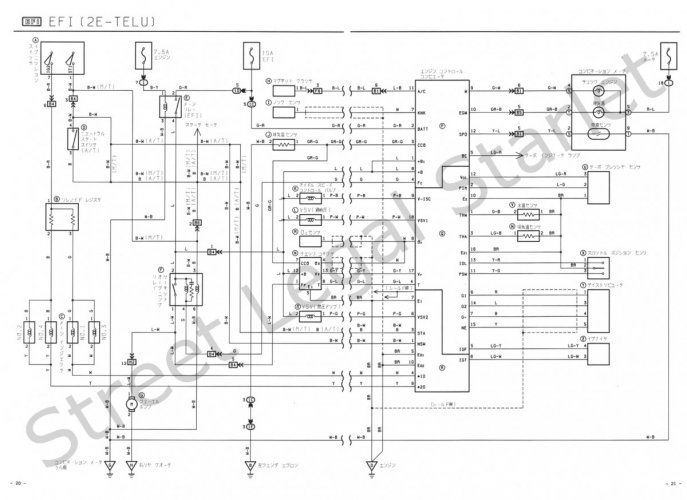

  • SLS - EP71 Wiring diagram 2e-telu.jpg
    SLS - EP71 Wiring diagram 2e-telu.jpg
    145.8 KB · Views: 21
  • Wiring-diagram-ecu-toyota.pdf
    2.7 MB · Views: 27
Last edited:
  • Like
Reactions: Jay

dolpher

Fresh Recruit
Yes but I didn't see anything I will re-open it just to be sure. Also the one that you attached its not the correct ECU it has 2 inputs where my ECU has 3 inputs with 1 hard wire go straight inside the ECU.
