oil lines

[adee-ep]

ive done a 5efte swap and where the oil filter goes is slightly different. i have used my 4efte sump so i have that oil line fine. but see the little metal oil line that also connects onto the bottom of the turbo were does the other end of that go? it would normally go to the bit beside the oil filter on the 4efte but thats not there on the 5efe so what do i have to do? cheers



[Rory]

Take the oil filter housing from the 4efte, and out it on the 5e. You need the oil feed to the turbo.
Job done.



[adee-ep]

does it swap over. when i checked my 4e it looked like it wouldnt fit onn the 5e



[Jay]

You will need to remove the mounting point of the oil filter on the 5E block before you can fit the 4EFTE housing mate. Also only the big bolt will hold the housing on as there are no boltholes for the three other smaller bolts.

Jay



[weeJohn]

You will need to remove the mounting point of the oil filter on the 5E block before you can fit the 4EFTE housing mate. Also only the big bolt will hold the housing on as there are no boltholes for the three other smaller bolts.

Jay

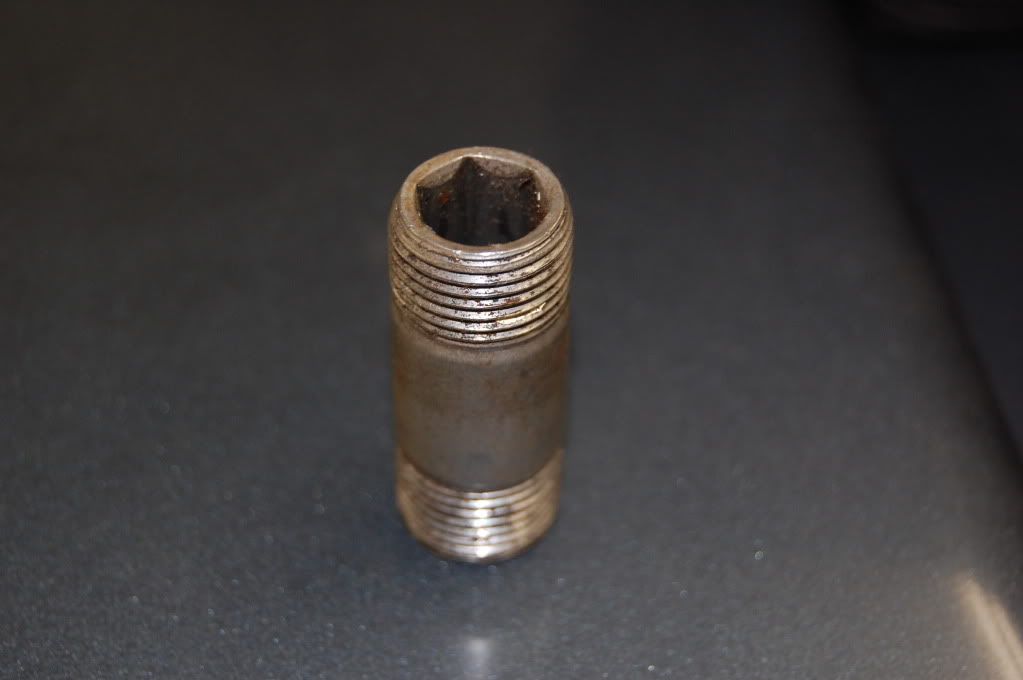

It has an allen key hex in the center of it, you dont need to put a set of pliers on it and destroy the threads.

If you plan to run an aftermarket oil filter relocator there will probably be a hole in that where you can connect an oil line to, with the right fittings on the line.



[Jay]

Yeah, a big ass hex is required.

I think one of the unions on the rear of the inlet manifold just happens to fit it too (that's what I used when I couldn't find a hex big enough).

That will leave a bolt hole for you to install the 4EFTE filter housing like so:

Let us know if you get stuck and we can pack Wee John up and post him over to you.



[adee-ep]

got it done cheers boys
